Electric Meat Emulsifier For Continuous and Efficioul Production

Short Description:

Hanpu’s independently developed emulsifier is suitable for processing products such as meat, pet food, baby food, cheese, fruits and vegetables, and sauces. It can operate as a standalone unit or be integrated with other equipment to form an automated production line.

Triple-cutter head cutting system can grind the water and oil in the meat fully at the speed of 3,000 rpm, making water and oil combine completely and feel no granular sensation. That can enhance final products taste and quality. Unique system of computer monitoring for spacing between knife and plates and automatic compensating system can reduce the spare parts consumption largely; The touch screen displays the temperature in real time, and the operation is simple and convenient. No oil is lost in the process of emulsifying product with high content of fat and water.


  • Applicable Industries: Hotels, Manufacturing Plant, Food Factory, Restaurant, Food & Beverage Shops
  • Brand: HELPER
  • Lead Time: 15-20 Working Days
  • Original: Hebei, China
  • Payment Method: T/T, L/C
  • Certificate: ISO/CE/ EAC/
  • Pacakage Type: Seaworthy Wooden Case
  • Port: Tianjin/Qingdao/ Ningbo/Guangzhou
  • Warranty: 1 Year
  • After-sale Service: Technicians arrive to install/Online Surpport/ Video Guidance
  • Product Detail

    Delivery

    About Us

    Product Tags

    Features and Benefits

    It features a two-stage cutting system comprising four high-precision cutting components (two high-performance cutting rings and two stainless steel cutting heads); the non-contact drive mechanism ensures zero tool wear. Combining continuous high-speed cutting with homogenization and emulsification, it transforms materials into a smooth, uniform paste.
    Inlet screw: Enables automatic feeding.
    Temperature monitoring: Equipped with two temperature sensors to monitor inlet and outlet temperatures, featuring dual-level protection against excessive temperature rise at the discharge point.
    All-stainless steel construction, easy to clean and compliant with food hygiene standards.

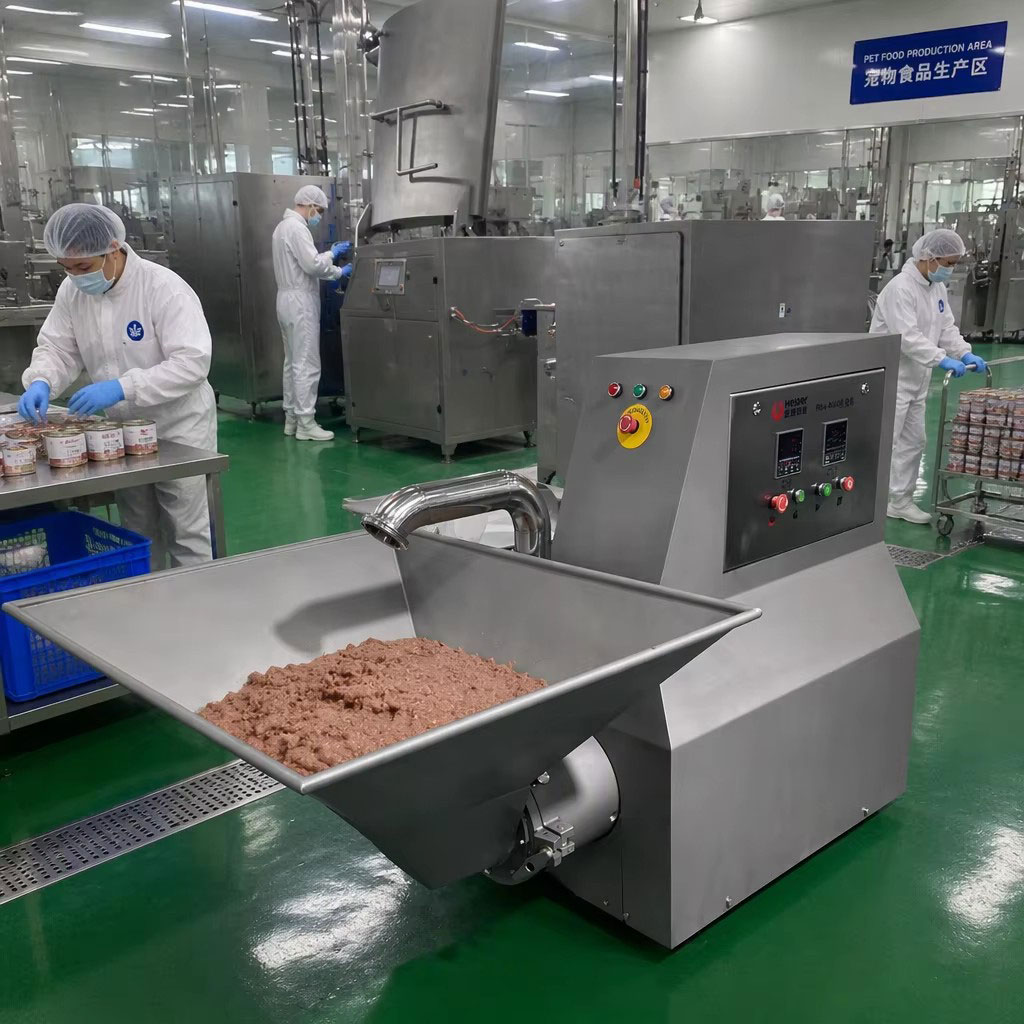

    pet-food-emulsifier

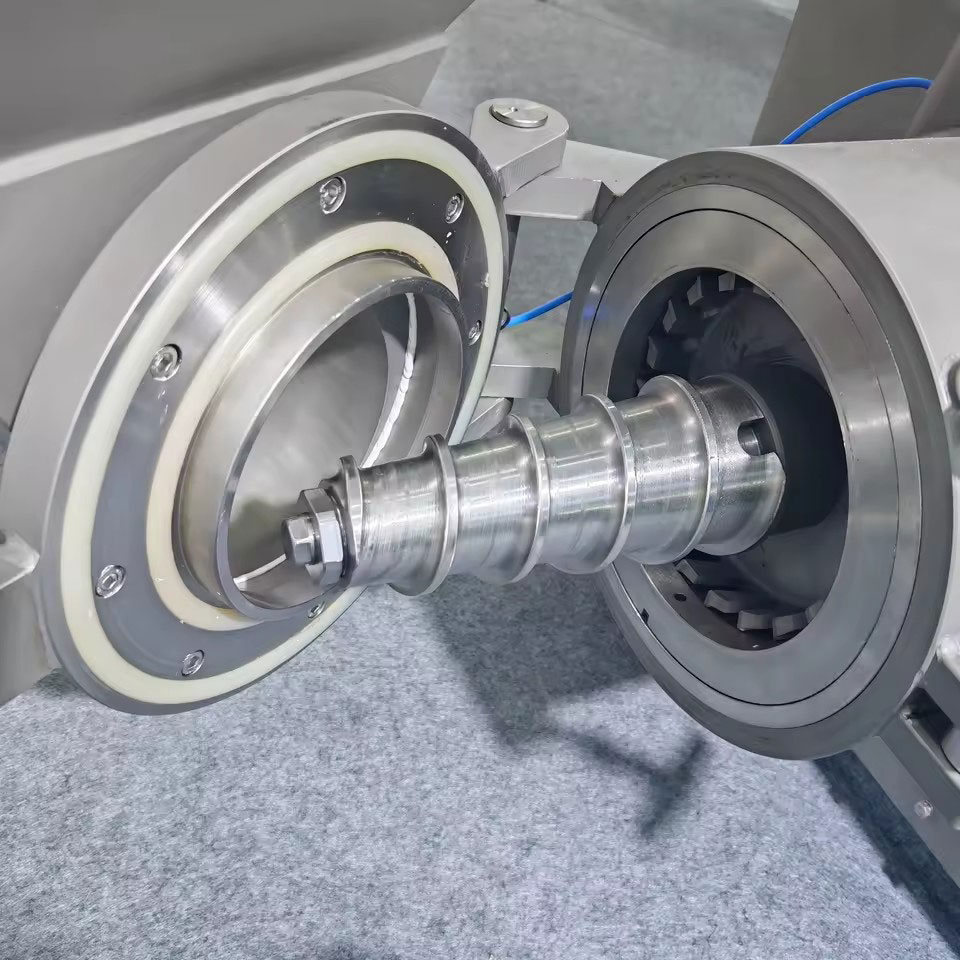

    emulsifier

    Technical Parameters

    Model Industrial Eulsifier RH-4000
    Performance Up to 4000kg/h
    Hopper Size 300 Liter
    Motor Speed 3000rpm
    Cutting Set 0.5~3.0mm
    Hole Plates 180mm
    Power 55kw
    Weight 9000kg
    Dimensions
    l2000*1000*1300mm

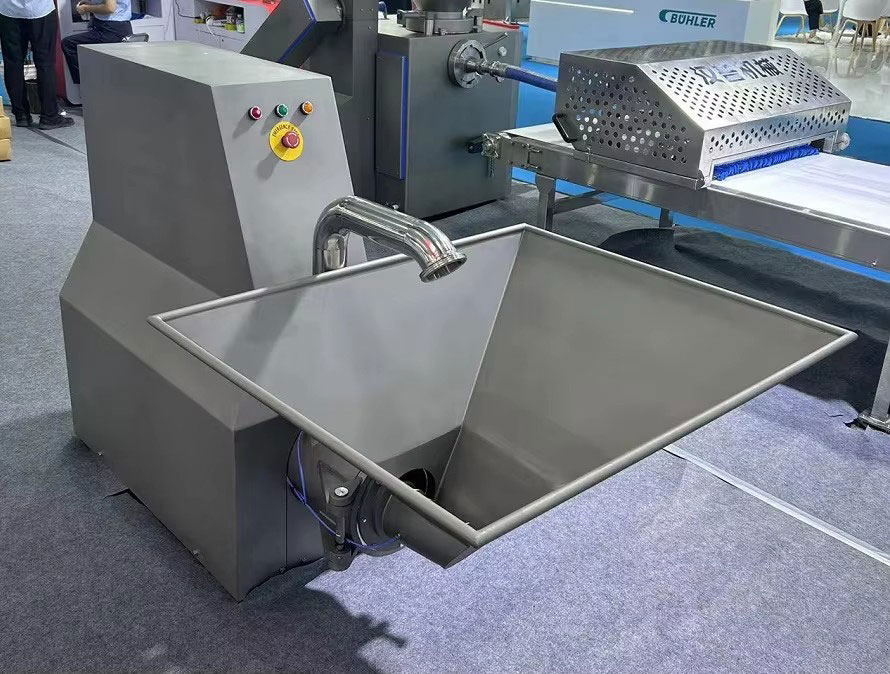

    Meat-pasta-emulsifier

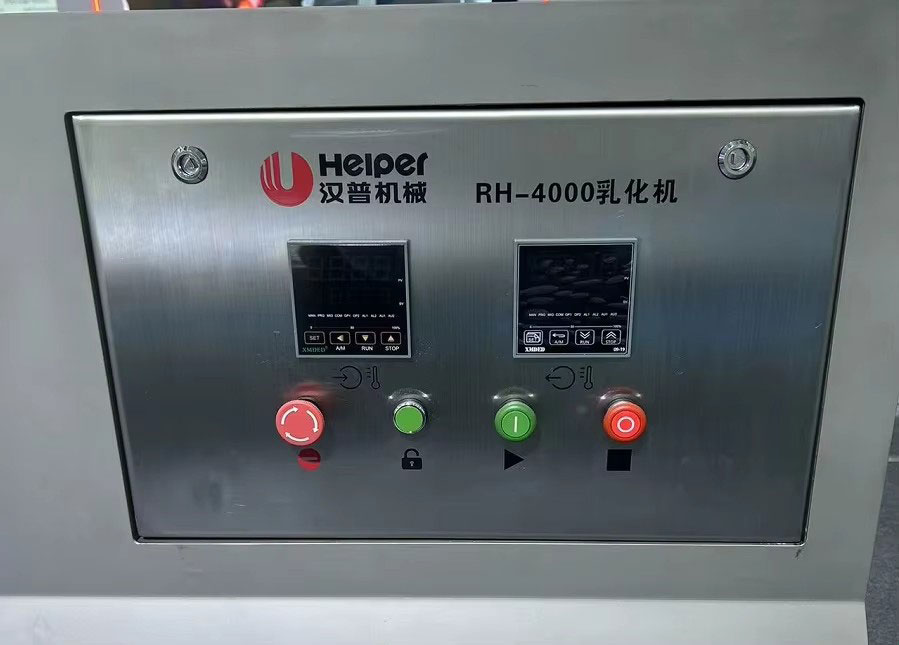

    sausage-emulsifier

    Machine Video
