Frozen Meat Dicer Machine

Short Description:

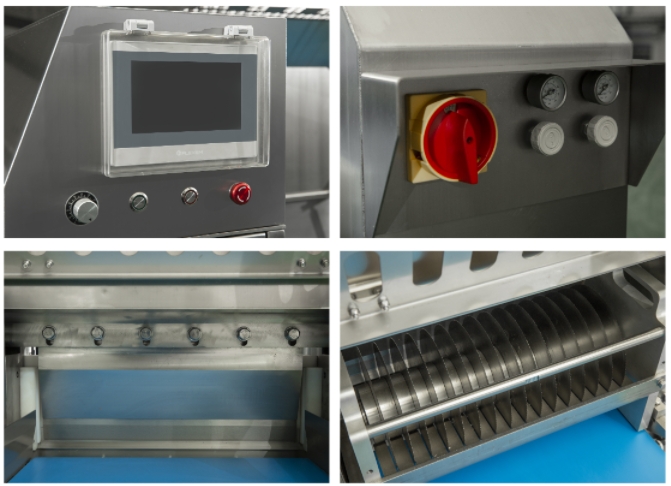

This is a frozen meat cutting machine QD-420 that can cut larger pieces of meat. It has two types of knife groups. The vertical cutter can cut a maximum thickness of 50mm. The spacing of the rolling cutter can be customized, and the size can be cut from 2-50mm. The maximum thickness of the raw frozen meat block that can be cut is 120mm. It has a servo motor to control the conveying speed to ensure accurate cutting size. The equipment is mainly composed of a conveyor device, a cutting device, a touch screen, etc.


  • Applicable Industries: Hotels, Manufacturing Plant, Food Factory, Restaurant, Food & Beverage Shops
  • Brand: HELPER
  • Lead Time: 15-20 Working Days
  • Original: Hebei, China
  • Payment Method: T/T, L/C
  • Certificate: ISO/CE/ EAC/
  • Pacakage Type: Seaworthy Wooden Case
  • Port: Tianjin/Qingdao/ Ningbo/Guangzhou
  • Warranty: 1 Year
  • After-sale Service: Technicians arrive to install/Online Surpport/ Video Guidance
  • Product Detail

    Delivery

    About Us

    Product Tags

    Features and Benefits

    • This dicing machine can cut frozen meat blocks at minus 10 degrees Celsius
    • The main material of the equipment is stainless steel
    • Servo motor drive to ensure accurate cutting size.
    • IP65 protection grade
    • HMI operation system
    • The Blade group can be customized as required to cut meat cubes of different sizes.

    Technical Parameters

    Model: QD-420

    Cutting Size: 20-50mm

    Max cutting thickness: 50mm

    Max cutting height: 120mm

    Power: 7kw

    Cutting speed: 90-110 times/min

    Conveyor belt: 1630( L)*420 (W)mm

    Meat Temperature:-6 ℃~ -10℃

    Weight: 890kg

    Dimension: 3120*1120*1700mm

    frozen meat dicer machine
